Rip Rap Calculator, Find the Right Size, Depth, and Amount
Get volume, tons, cost, and the right depth for erosion control stone
| Class | Stone Size | Density (lb/ft³) | Typical Depth |
|---|---|---|---|
| Class 1 / R-3 | 6 to 12 in | 105 | 12 in |
| Class 2 / R-4 | 12 to 18 in | 110 | 18 in |
| Class 3 / R-5 | 18 to 24 in | 115 | 24 in |
| Class 4 / R-6 | 24 to 36 in | 120 | 36 in |
Related Calculators
A patch of bare soil near a slope or a shoreline usually shows up before anyone plans for it. Water keeps moving, soil keeps washing out, and the fix gets more expensive the longer it waits. A rip rap calculator turns that problem into real numbers, size, depth, volume, and tons, before you order any stone.
Usually there is already a real problem on the ground. A slope is eroding, a ditch keeps washing out, or a shoreline loses more ground every storm. The math matters, but only once you know rip rap is actually the right fix.
This guide walks through that full path. Start with diagnosing the problem, move into stone sizing and depth, then calculate volume, tons, and cost before ordering anything.
Do You Actually Have an Erosion Problem
Not every bare patch of soil needs a load of stone. A few clear signs separate a real erosion problem from normal wear.
Signs Soil Is Washing Away
Look for bare soil patches near water or along a slope. Exposed roots or an undermined edge near a bank are strong warning signs too.
When Rip Rap Is the Right Fix
Rip rap fits when moving water, wave action, or steady runoff is present. It also fits when grass or mulch has already failed to hold the soil in place.
When Rip Rap Is Not the Right Fix
Flat, dry areas with no water flow rarely need rip rap at all. Purely decorative landscaping is usually better served by river rock instead.
- Is water moving across or against this area regularly? If no, rip rap is likely unnecessary.
- Has grass, mulch, or soil already started washing away? If no, monitor the area first.
- Is the goal structural protection rather than decoration? If no, consider river rock or gravel instead.
What Rip Rap Actually Is
Angular stone is what makes rip rap work. The rough, jagged edges lock stones together against each other, so a finished layer holds its shape under moving water instead of sliding apart. You will see it called rip rap, riprap, or rock armor depending on the supplier, but the sizing and depth math never changes.
Why a Rip Rap Layer Uses a Mix of Sizes
A good rip rap layer is never one uniform stone size. Smaller stones fill the gaps between larger ones, which packs the layer tighter and stops water from finding a path underneath.
How Rip Rap Differs From Gravel and River Rock
Gravel and river rock are smaller and rounder, built for pathways and decoration. Rip rap is larger and angular, built to resist the force of moving water.
| Material | Stone Shape | Typical Size | Best Use |
|---|---|---|---|
| Rip rap | Angular, interlocking | 6 to 36 in | Erosion control, shorelines, slopes |
| Gravel | Small, mixed | Under 1 in | Pathways, base layers, light drainage |
| River rock | Smooth, rounded | 1 to 6 in | Decorative beds, drainage accents |

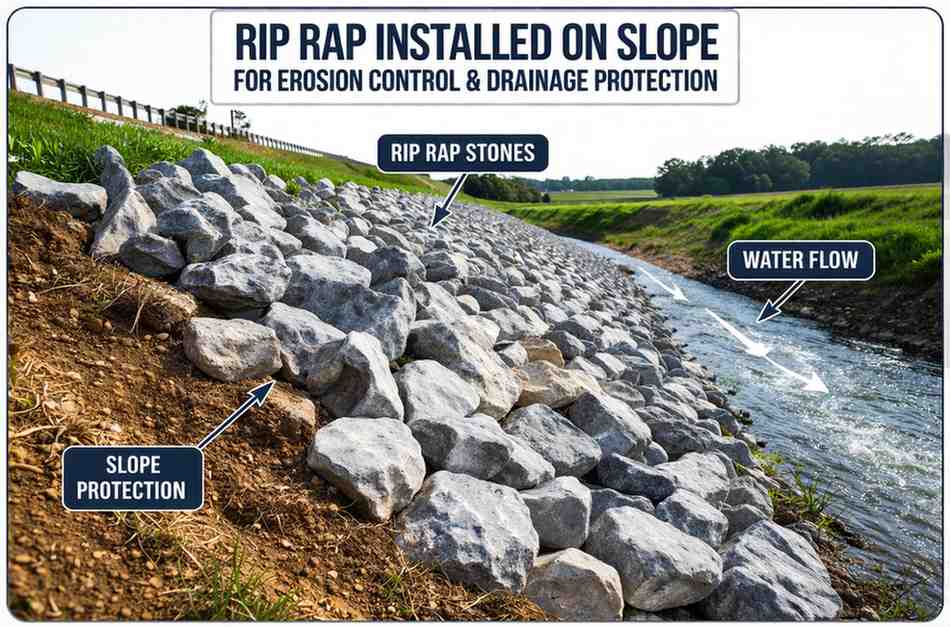

How Rip Rap Stops Erosion
Rip rap works by breaking the force of moving water before it reaches bare soil. The gaps between stones slow the water down instead of letting it hit the ground directly.
Breaking the Force of Moving Water
Stones absorb energy that would otherwise strip soil away. As water passes through the gaps, it loses speed and pressure.
Why Filter Fabric Matters Underneath
Filter fabric keeps fine soil from washing out through the gaps in the rock. Skipping it is one of the most common reasons a rip rap installation fails early.

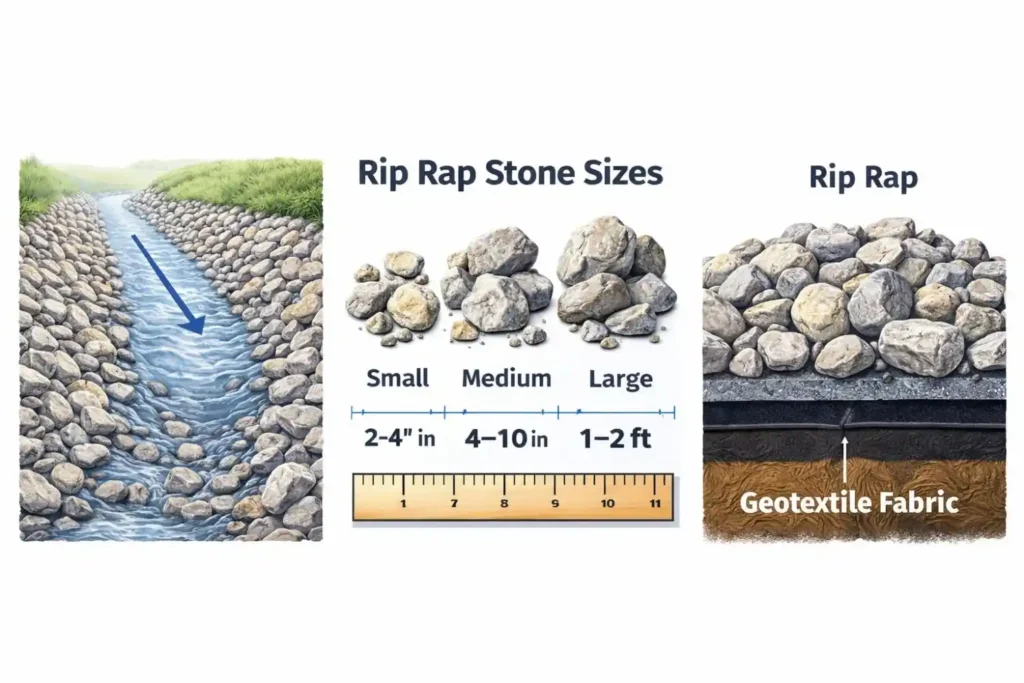

Rip Rap Stone Classes and Sizes Explained
Stone size is labeled a few different ways depending on the supplier. A rip rap calculator needs the right class selected before the density and depth numbers mean anything.
Class and R Number Systems
Class 1 through Class 4 is the labeling most US suppliers use. R-3 through R-6 is an alternate system some regions use instead, covering the same size ranges.
What D50 Means
D50 refers to the median stone size in a mixed load of rock. Half the stones by weight are larger than this number, and half are smaller.
Matching Stone Size to Water Conditions
Small stone works for light drainage and low flow areas. Large stone is necessary for shorelines, rivers, and other high flow zones.
| Class / R Number | Stone Size | Density (lb/ft³) | Typical Use |
|---|---|---|---|
| Class 1 / R-3 | 6 to 12 in | 105 | Ditches, small slopes, low flow |
| Class 2 / R-4 | 12 to 18 in | 110 | Stream banks, culverts, moderate flow |
| Class 3 / R-5 | 18 to 24 in | 115 | High energy shorelines, bridge abutments |
| Class 4 / R-6 | 24 to 36 in | 120 | Severe erosion, large rivers, coastal work |
How Deep Should a Rip Rap Layer Be
Depth is just as important as stone size, and the two are directly connected. A layer that is too thin fails no matter how large the stone is.
The 1.5 Times Rule
Layer depth should be at least 1.5 times the largest stone size. High flow projects often call for closer to 2 times instead.
Minimum Depth Regardless of Stone Size
Never go below 6 inches, even with the smallest stone class. A thin layer fails quickly once water pressure builds up against it.
Depth on Uneven Ground
Low spots need extra material to stay level with the rest of the layer. Compact the base before placing any stone on top of it.
How a Rip Rap Calculator Finds Volume and Tons
Three simple inputs turn into a final tonnage figure. Area, depth, and density work together through a short chain of steps.
Step One, Measure Your Area
Rectangle areas are the simplest, just multiply length by width. Circular areas, common around ponds, use radius squared multiplied by pi.
Step Two, Turn Area Into Volume
Multiply area by depth, after converting depth into feet. This gives you volume in cubic feet.
Step Three, Convert Volume Into Tons
Divide cubic feet by 27 to reach cubic yards. Multiply cubic yards by density to reach your final tons.
Why Density Changes the Final Number
Larger stone classes carry a higher density value per cubic foot. The same volume of Class 4 stone weighs noticeably more than Class 1.
Rip Rap for Irregular Shapes and Slopes
Real project sites rarely come as a perfect rectangle. A few adjustments keep the math accurate on uneven or curved ground.
Sloped Banks and Embankments
Measure along the slope face itself, not the flat ground distance below it. A steep slope covers more surface area than it appears to from above.
Curved Shorelines and Ponds
Break curved shorelines into smaller straight sections wherever possible. Circular pond edges work well with a radius based area estimate instead.
Combining Multiple Sections
Calculate each section separately, then add the totals together. This stays far more accurate than one rough estimate for the whole area.
Adding a Waste Factor to Your Order
A calculated tonnage number is a starting point, not a final order. Real sites lose material to gaps, settling, and uneven ground.
Why a Zero Waste Order Falls Short
Gaps between stones and settling after placement both use extra material. A raw calculation rarely matches what actually gets placed on site.
Typical Waste Percentages
Standard rectangular projects usually do fine with 5 to 10 percent extra. Irregular shapes or steep slopes often call for a higher buffer.
Rip Rap Cost, What to Budget For
Tonnage tells you what to order. Cost tells you what to budget, and a few separate pieces make up that final number.
Material Cost Per Ton
Most rip rap runs 30 to 100 dollars per ton, depending on region and stone class. Larger stone classes typically cost more per ton than smaller ones.
Filter Fabric and Delivery Costs
Filter fabric usually runs 50 cents to 1.50 dollars per square yard. Delivery fees add on top of the material price and vary by distance.
Cost Per Linear Foot for Shoreline Projects
Shoreline jobs often get quoted by the linear foot instead of by the ton. Typical residential shoreline work runs 60 to 150 dollars per foot.
| Cost Item | Typical Range |
|---|---|
| Rip rap material | 30 to 100 dollars per ton |
| Filter fabric | 0.50 to 1.50 dollars per sq yd |
| Delivery | Varies by distance from supplier |
| Shoreline install, per foot | 60 to 150 dollars per foot |
Do You Need a Permit for Rip Rap
Permitting is one of the most overlooked steps in planning a rip rap project. Skipping this check can delay or even undo finished work.
Why Waterway Projects Often Need Approval
Work near a river, lake, or wetland usually needs review before it starts. The US Army Corps of Engineers commonly handles this review in the United States.
Checking Local Requirements First
Local building or environmental offices may add their own separate rules. Confirm requirements before ordering material or starting any work near water.
DIY Installation vs Hiring a Contractor
Not every rip rap project needs a professional crew. The right choice depends on water conditions, slope, and access to the site.
When a DIY Approach Works
Small drainage areas or low flow spots with easy access are good DIY candidates. Straightforward rectangular areas on stable, dry ground also work well.
When to Bring in a Professional
Shoreline, riverbank, or high flow water projects call for professional experience. Steep slopes, poor access, or uncertain soil conditions raise the risk of a DIY attempt.
- Water flow is light or seasonal, not constant or fast moving
- The site is flat or gently sloped with easy equipment access
- The area is small enough to place stone by hand or small machine
- No permit or engineering review is required for the work
If most of these do not apply, a professional installer is the safer choice.
How to Install Rip Rap Step by Step
Calculating the right amount of stone is only half the job. Installing it correctly is what actually stops the erosion.
Preparing the Base
Clear debris and compact the soil before placing anything on top. Grade the area so water drains the way you actually intend.
Laying the Filter Fabric
Roll fabric out with overlapping seams instead of leaving gaps between sheets. Anchor the edges so the fabric does not shift while you place stone.
Placing and Keying In the Stone
Start from the bottom of a slope and work upward as you place stone. Key the toe of the layer into the ground to stop it from sliding.
Checking Your Finished Layer
Confirm depth stays consistent across the entire area, not just in one spot. Look for gaps or thin spots before considering the job finished.
- Debris cleared and soil compacted across the full area
- Filter fabric laid with overlapping, anchored seams
- Stone placed from the bottom up, toe keyed into the ground
- Depth checked in multiple spots, not just the center
Common Mistakes When Calculating and Installing Rip Rap
Most rip rap problems trace back to a short list of repeat mistakes. Catching these early saves both money and rework.
Using the Wrong Density for Your Stone Class
Each stone class carries a different density value. Applying the wrong one throws off your final tonnage without any obvious warning sign.
Skipping the Waste Factor
A calculation with no waste buffer almost always leaves a project short. Gaps and settling both eat into your raw calculated number.
Installing Without Filter Fabric
Skipping fabric lets fine soil wash out through the gaps in the stone. This causes the layer to settle and lose effectiveness over time.
Choosing a Layer Too Thin for the Stone Size
Depth needs to scale with stone size, not sit at a fixed number. A thin layer fails under pressure regardless of how large the stone is.
Ignoring the Toe and Edge of the Slope
An unkeyed toe lets the entire layer slide over time. Edges left unfinished are often where erosion restarts first.
Worked Examples for Real Projects
Real numbers make the process easier to picture than formulas alone. These four examples cover common project types.
Example, Small Drainage Ditch
A short, narrow ditch using Class 1 stone needs a modest amount of material. A 12 inch depth matches the 6 to 12 inch stone size well.
Example, Residential Shoreline
A lakefront section using Class 2 stone calls for an 18 inch layer. Shoreline work like this often gets quoted by the linear foot too.
Example, Culvert Outlet
A small area at a culvert outlet often needs extra depth for fast moving water. Even a compact footprint can require a thicker layer than expected.
Example, Circular Pond Edge
A pond edge calculated with the radius based method skips length and width entirely. This keeps the estimate simple for a naturally curved shape.
FAQs About Using This Rip Rap Tool
How much rip rap do I need for my project
It depends on your area, depth, and stone class density. A calculator combines all three into a final tonnage figure.
How thick should a rip rap layer be
Depth should be at least 1.5 times the largest stone size. Never go below 6 inches, even with the smallest stone class.
What is the difference between rip rap and riprap
There is no real difference, both spellings describe the same stone product. The formulas and sizing stay identical either way.
Does rip rap need filter fabric underneath
Yes, in most cases. Fabric keeps soil from washing out through the gaps in the stone layer.
How many tons of rip rap per cubic yard
Most rip rap falls between 1.4 and 1.7 tons per cubic yard. Larger stone classes sit toward the higher end of that range.
What is D50 in rip rap sizing
D50 is the median stone size in a mixed load. Half the stones by weight are larger, and half are smaller.
Can I use gravel instead of rip rap
Gravel works for light drainage but not for erosion control. It lacks the size and weight rip rap needs to resist moving water.
Do I need a permit to place rip rap near water
Often, yes. Projects near rivers, lakes, or wetlands usually need review before work begins.
Why This Rip Rap Calculator Works Better
Most tools online stop at a single rectangle and a basic tonnage figure. This one covers the full planning process instead.
- Rectangular, direct area, and circular shapes in one tool
- Stone class presets that set density and suggested depth automatically
- Cost, truckload count, and a to-scale depth preview together
- A plain language permit reminder most tools skip entirely
Conclusion
A rip rap calculator takes you from a real erosion problem to an actual order, covering size, depth, volume, and tons along the way. Check permit requirements and add a waste factor before finalizing anything.
For shoreline, riverbank, or high flow projects, bring in a professional rather than relying on a DIY estimate alone. Getting stone size and depth right the first time saves both money and repeat work.
